Configuring display#

Viewport#

A viewport is a rectangular area on your desktop in which your camera will display its rendering. A viewport must be assigned a camera.

Actions#

  • "Fit to display": Will maximise the viewport to match the display

  • "Auto Viewports Creation...":

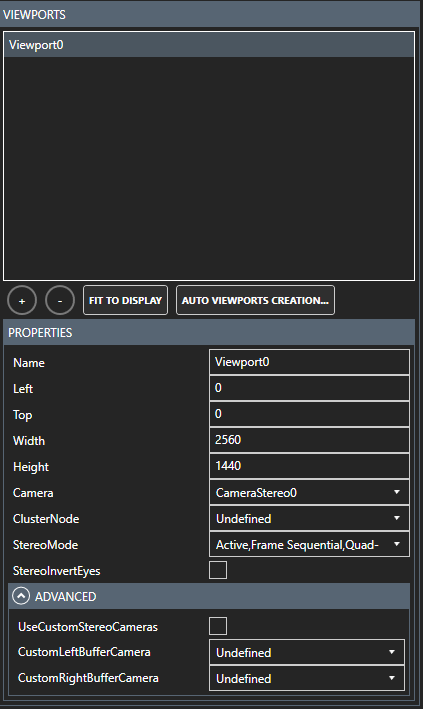

Properties#

  • Name : Name of the viewport

  • Left : The left pixel coordinate of the viewport. Can be negative, to display on a secondary monitor for example.

  • Top : The top pixel coordinate of the viewport. Can be negative, to display on a secondary monitor for example.

  • Width : Width of the viewport in pixels.

  • Height : Height of the viewport in pixels.

  • Camera : The camera assigned to this viewport. Required.

  • ClusterNode : To which cluster node is this camera assigned.

  • StereoMode :The stereoscopic mode of the viewport. Will be enabled only if the Camera is a Stereoscopic camera. "Active, Frame Sequential, OpenGL Quad-Buffer": This is the mode for active stereoscopy. "Side-by-side": This is the mode for passive stereoscopy.

  • StereoInvertEyes : Reverse the left-right eye rendering. Will be enabled only if the Camera is a Stereoscopic camera.

  • UseCustomStereoCameras : On very specific stereoscopic systems, you might need to choose custom left and right cameras for a viewport. This option allows for this.

Window#

MiddleVR will create a single window per cluster node that contains all your viewports. You can control the behavior with the following properties:

  • WindowMode : Choose how MiddleVR will display the images. "Compositor": Will open a new compositor window and hide Unity's window. "Proxy": An old mode and should only be used for back compatibility. "Unity Window": Will keep Unity window. Compositor or Proxy is required for cluster and/or active stereoscopy. Compositor is required for DirectX 12 support.

  • CompositorMode : If WindowMode is Compositor, choose the compositor renderer. Auto, OpenGL Direct3D11. If unsure set to Auto.

  • AlwaysOnTop : Will the window remain above all other windows?

  • ShowMouseCursor : Hide the mouse cursor if set to false.

  • VSync : Will the window wait for vertical synchronization? This will be forced to true when an active stereoscopy viewport is detected.

  • Anti-Aliasing : Sets the anti-aliasing level. Currently only available in Forward Rendering.

  • Force Hide Taskbar : On some systems the Windows Taskbar is not correctly hidden. This parameter uses a more aggressive technique to hide it.
